I Type

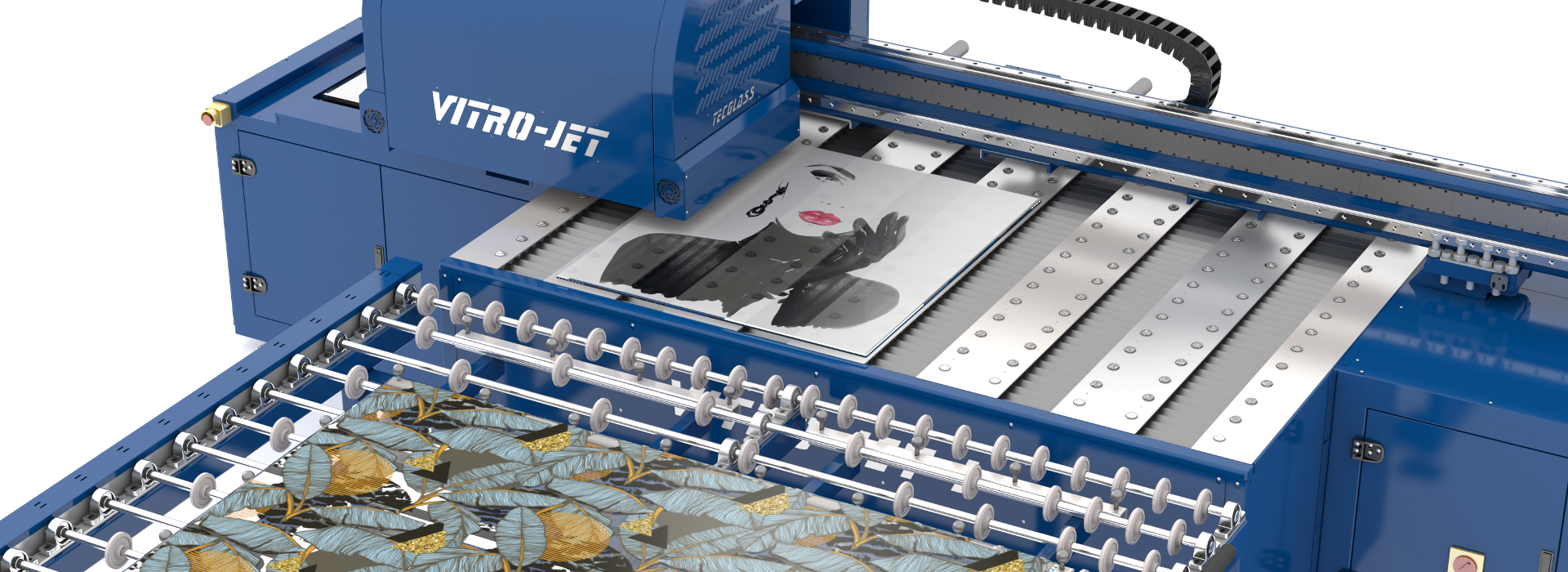

Vitro Jet I TYPE

Industrial machine at a competitive price.

A fully-automated solution optimizes your investment and productivity.

  • Highly durable suction conveyor system precisely and safely moves glass, even the thickest and largest glass sheets.
  • Sturdy, solid structure maintains the highest levels of performance over time.
  • Split Head Technology (SHT) for one-pass printing of a different image on each side of the glass sheet.
  • 3 different configurations of the print line and optional upgrades: from basic to top-of-the-line configuration.
  • High flow rate ink recirculation system: no ink residue on the heads, no need for cleaning.

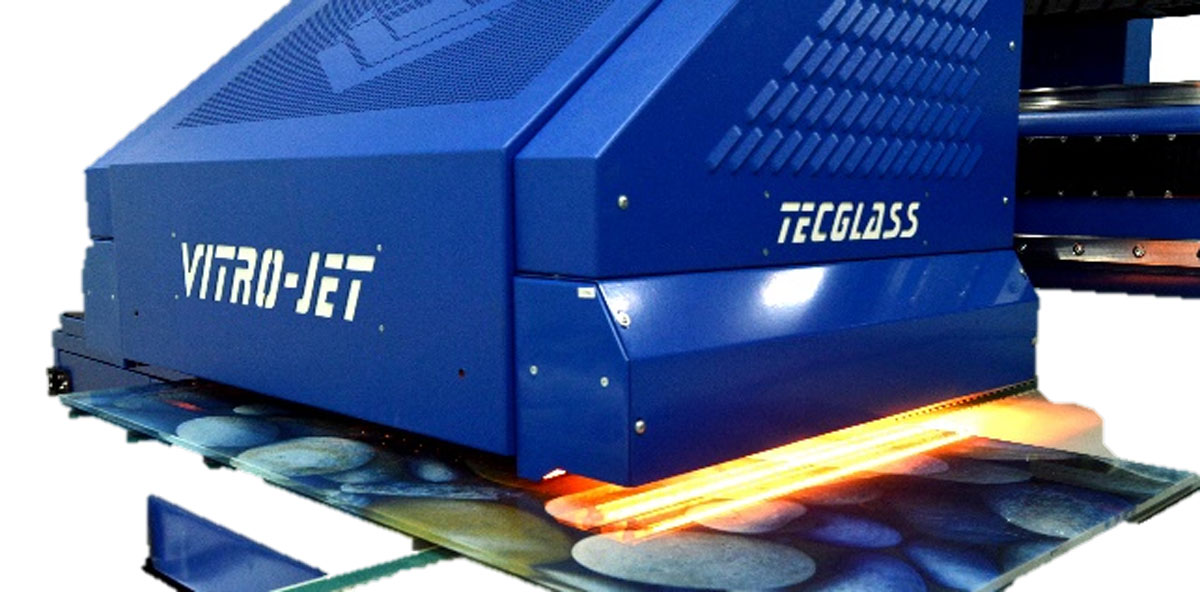

  • SDT Simultaneous Drying Technology for automatic, simultaneous printing and drying.
  • Print resolution: up to 2880 dpi
  • VDS Technology: 9 levels of ink drop sizes for maximum speed and precision in every print application
  • Vitro-Palette. Thousands of color formulations are ready to use. Choose from RAL, Pantone, NCS and many other Color-book formulations.
  • Vitro-Catalog. A catalog of ideas, images and graphic designs always available on our website.



Applications

Excellent throughput and maximum print quality for all applications in the following sectors:

  • Architecture
  • Interior decor
  • Automotive

Aviable variables

  • 25 45

    Max Glass Size

    2.500 x 4.500 mm

  • 25 60

    Max Glass Size

    2.500 x 6.000 mm

  • 28 45

    Max Glass Size

    2.800 x 4.500 mm

  • 28 60

    Max Glass Size

    2.800mm x 6.000mm

Printing speed - Multicolor printing

  • Single pass printing at 360 dpi up to 120 sqm/hour.
  • Double pass printing at 720 dpi up to 90 sqm/hour.
  • 4 pass printing at 1080 dpi up to 40 sqm/hour.
  • 6 pass printing at 1440 dpi up to 25 sqm/hour.

Benefits only a Tecglass machine can provide

Line components and auxiliary machinery
