F type F K Series

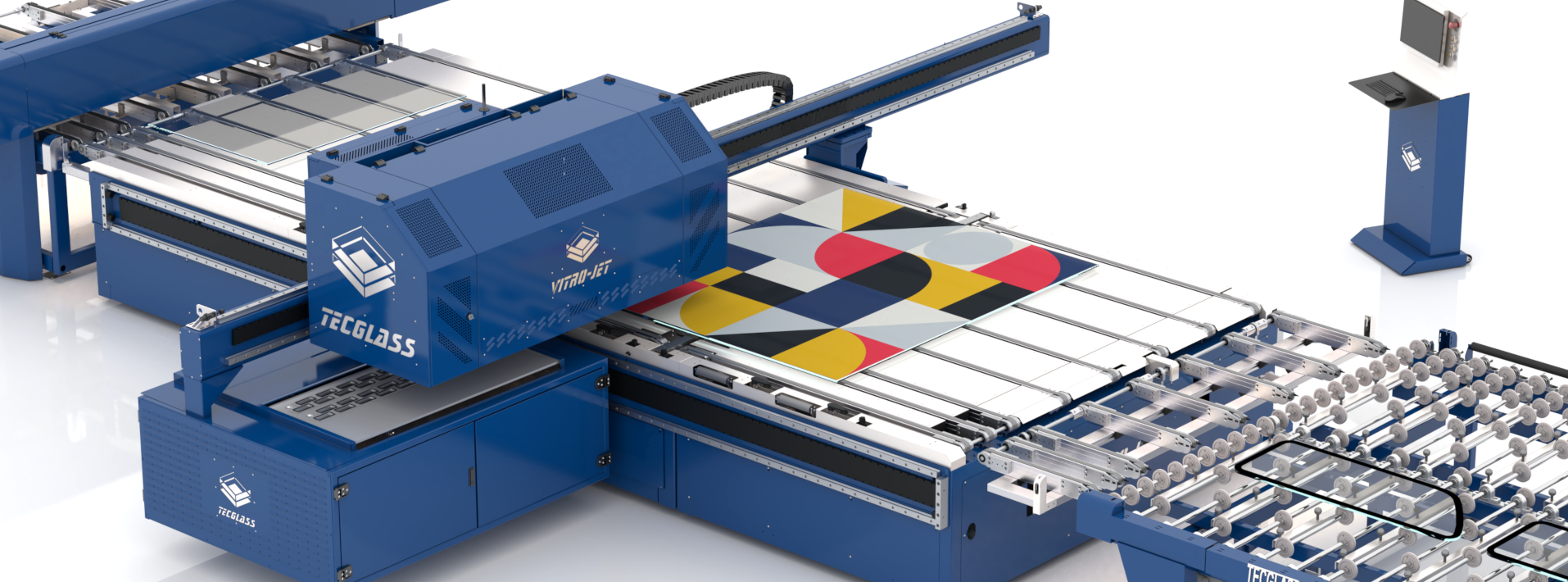

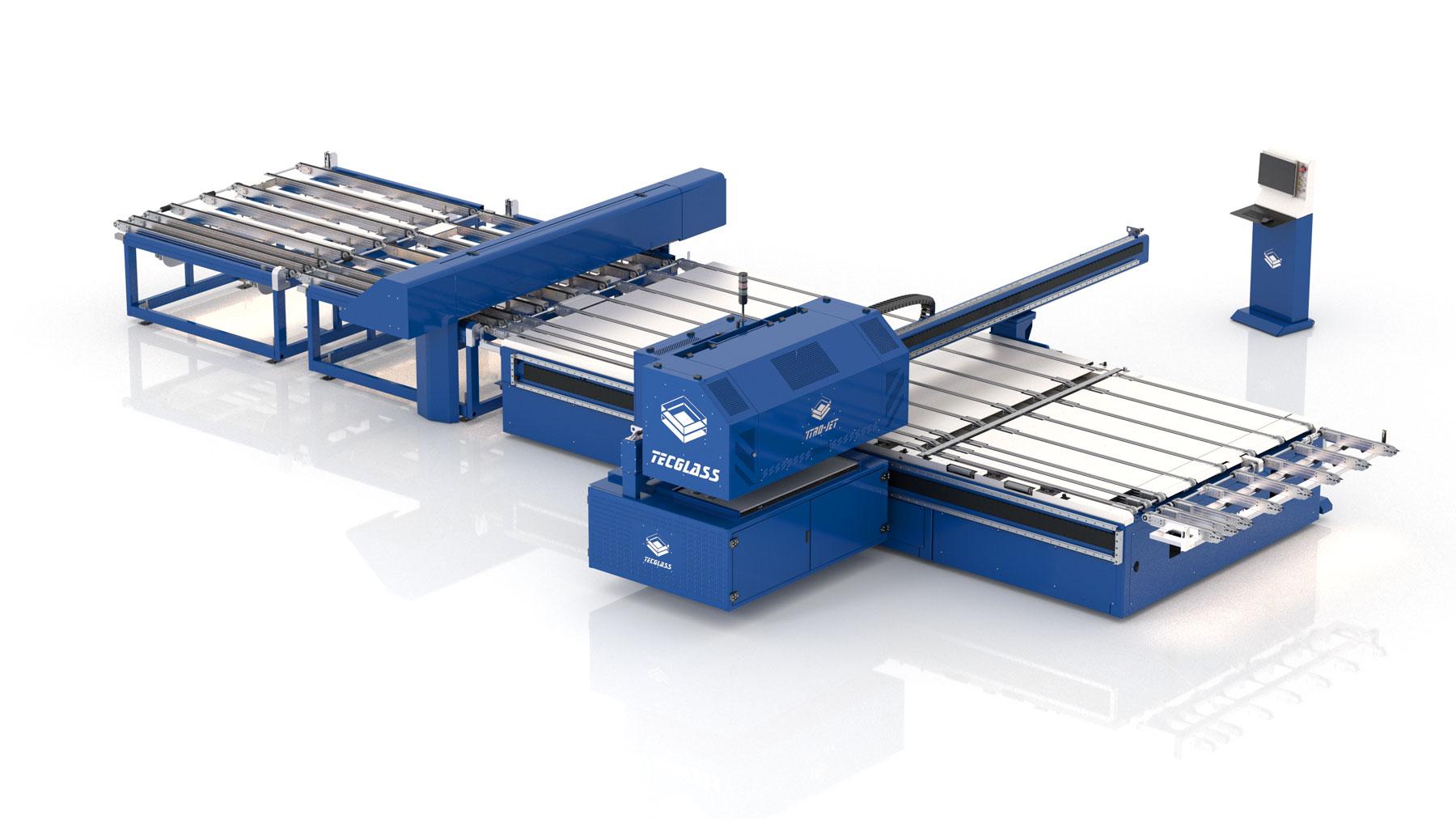

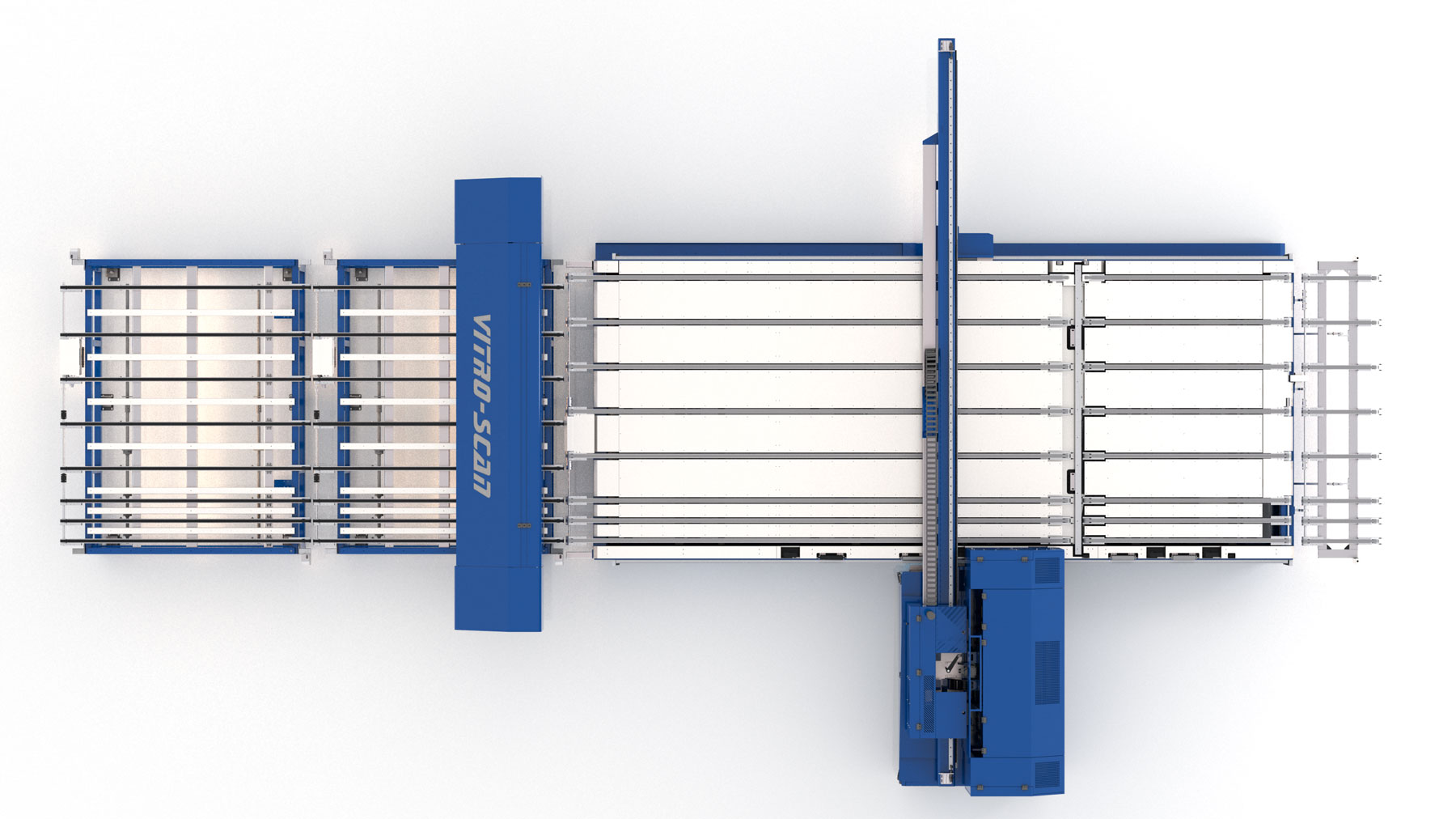

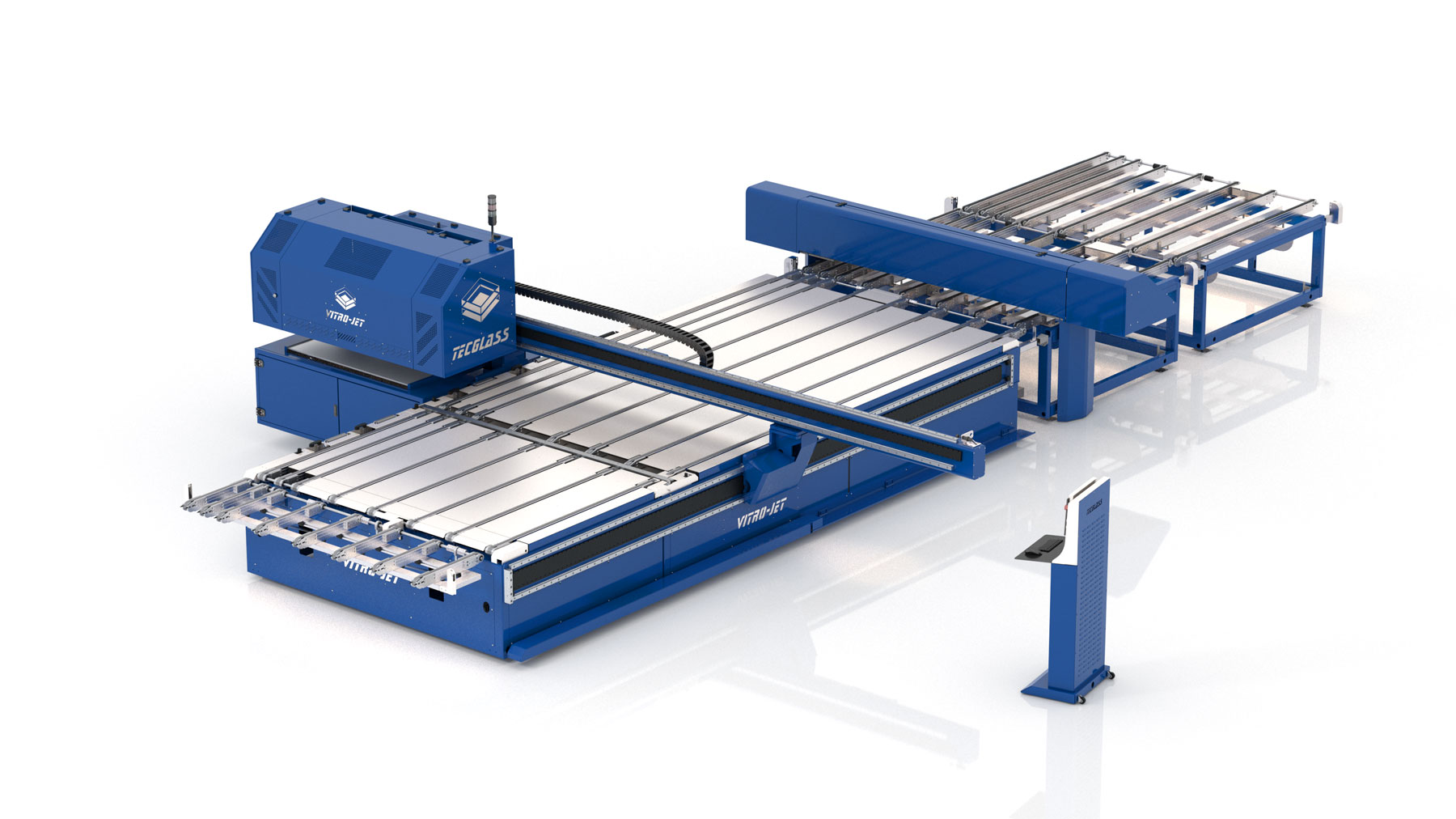

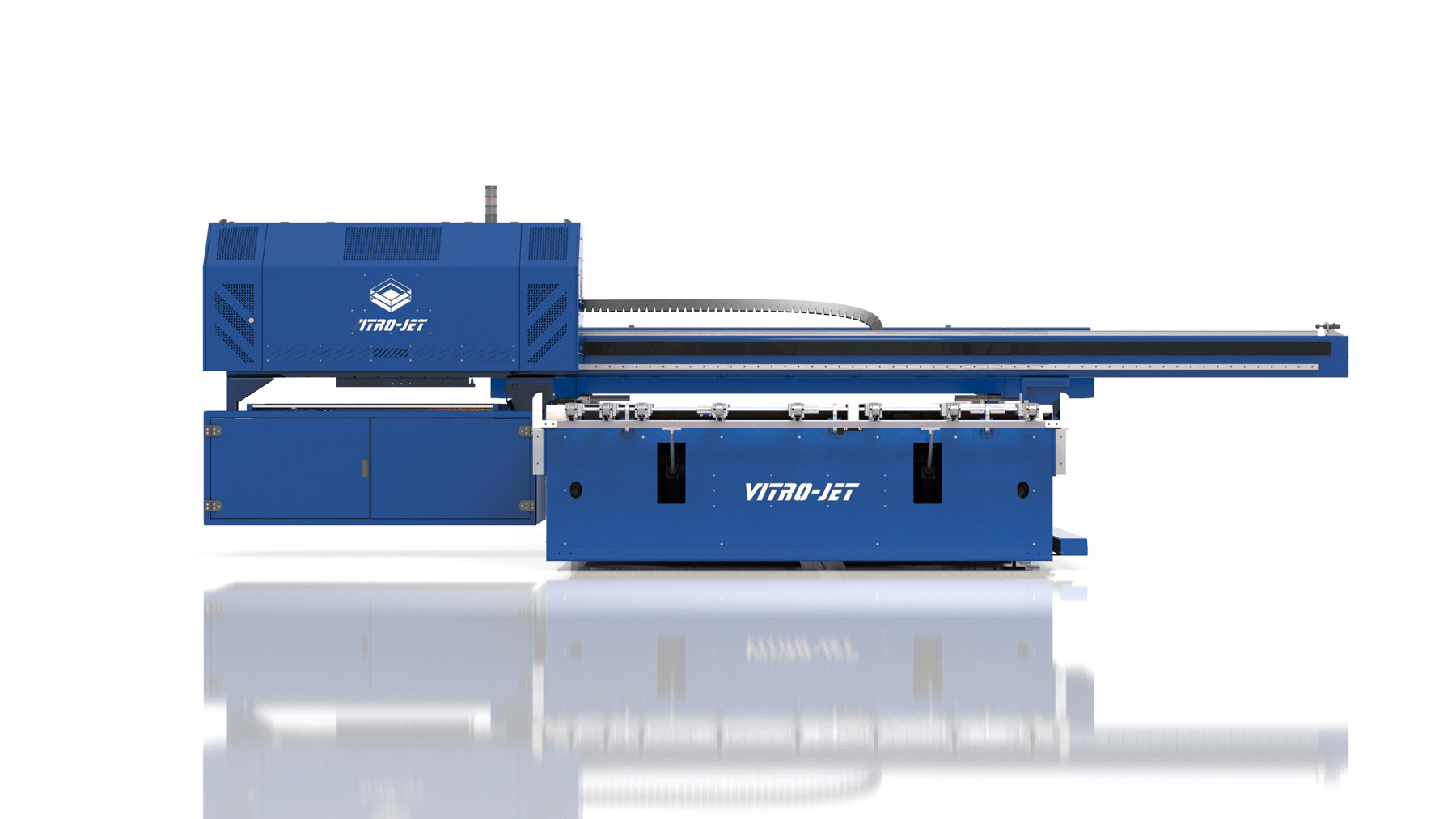

Vitro Jet F type F K Series

The best multifunctional machine for Single Pass and Multi Pass printing.

Speed up, optimize and simplify printing operations for mass-production.

  • Perfectly combines fastest Single Pass and Multi Pass print speeds with the highest resolution and multicolor print quality on large-sized sheets of glass.
  • Single Pass print speed: 20 seconds for glass size 4500 x 1200 mm (single color).
  • Multi Pass print speed: 90 seconds for glass size 4.500 X 2.500 mm (single color).
  • Upgrade up to 7 color channels.

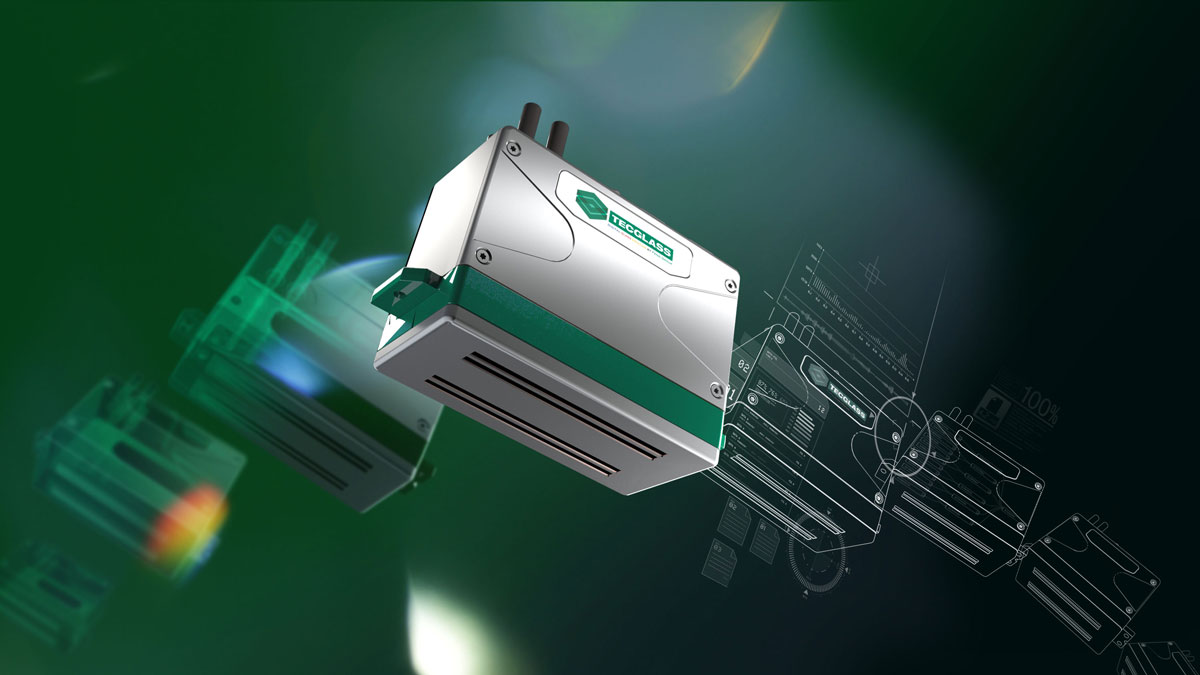

  • Upgrade up to 36 print heads, dual-color technology / 72 single print heads (1000 nozzles per color).
  • Multicolor print speed / photo-realistic images: up to 60 sqm/h.
  • High flowrate ink recirculation system, no need to clean the heads.
  • SDT Simultaneous Drying Technology, automatic drying of the glass sheet simultaneous with printing.
  • Up to 2880 dpi print resolution.
  • VDS - 9 levels of ink drop sizes for maximum print speed and precision.


Tecglass VITRO-JET F TYPE FK SERIES - Showroom Automotive Glass Mass Production

Take a look at the Video preview here

Aviable variables

  • FK 6

    Max Glass Size

    2.800 mm x 4.500 mm

  • FK 12

    Max Glass Size

    2.800 mm x 4.500 mm

  • FK 18

    Max Glass Size

    2.800 mm x 4.500 mm

Printing speed

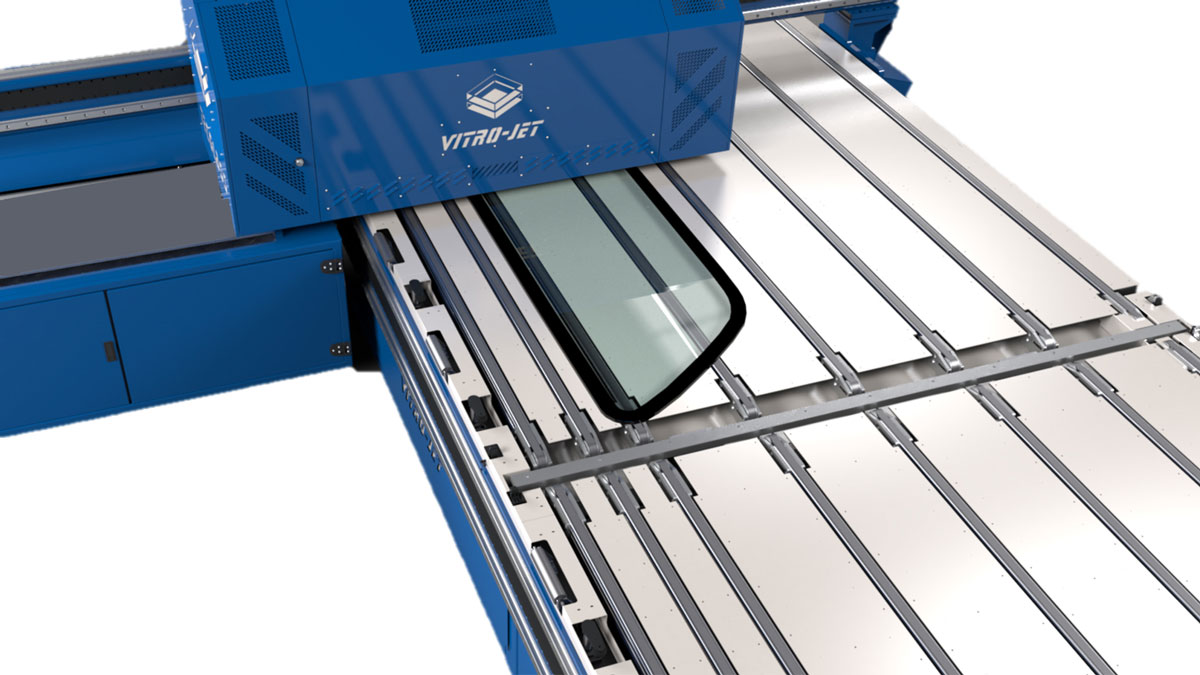

  • Single Pass 20 seconds 4.500 x 1.200 mm glass size

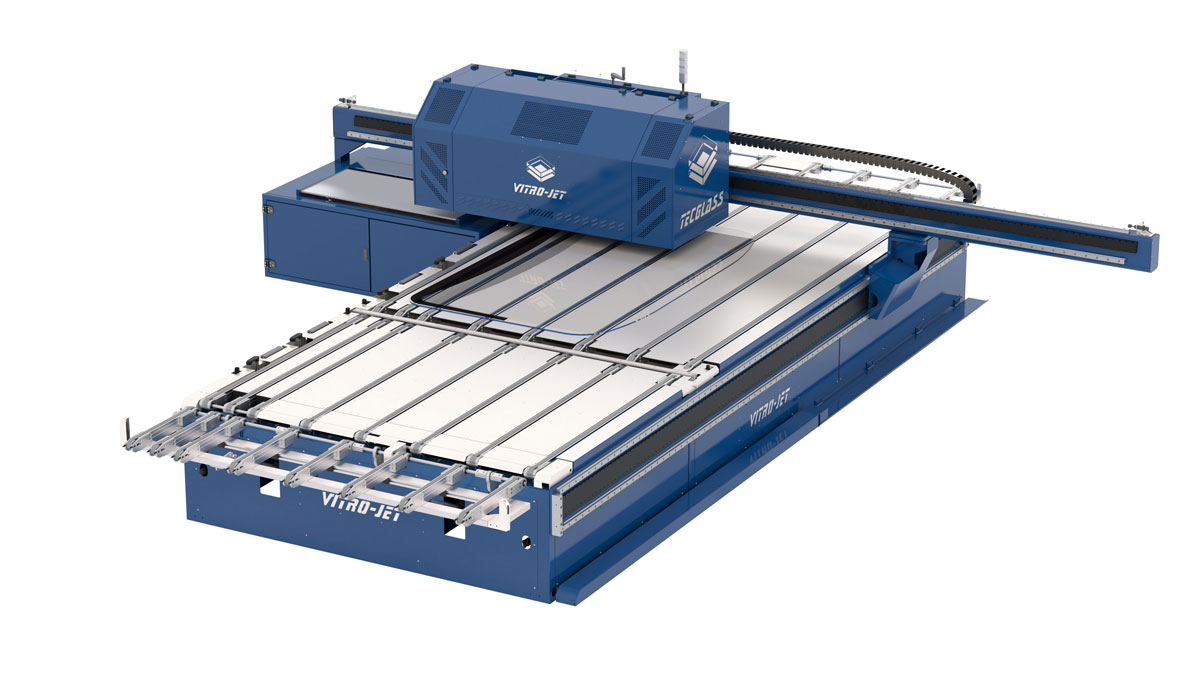

  • Multi Pass – One color 90 seconds 4.500 x 2.500 mm glass size
  • Multicolor up to 90 sqm/hour 720 dpi Stone or Wood imitations
  • Multicolor up to 60 sqm/hour 1440 dpi photorealistic images

Contact us for more questions or request about: F type F K Series
