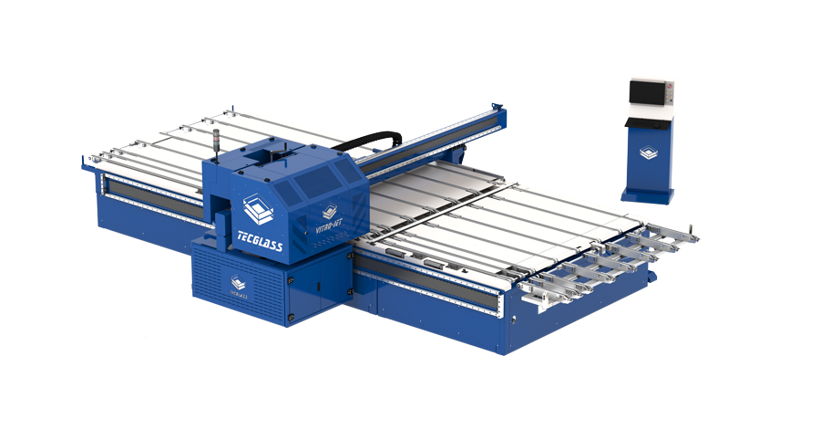

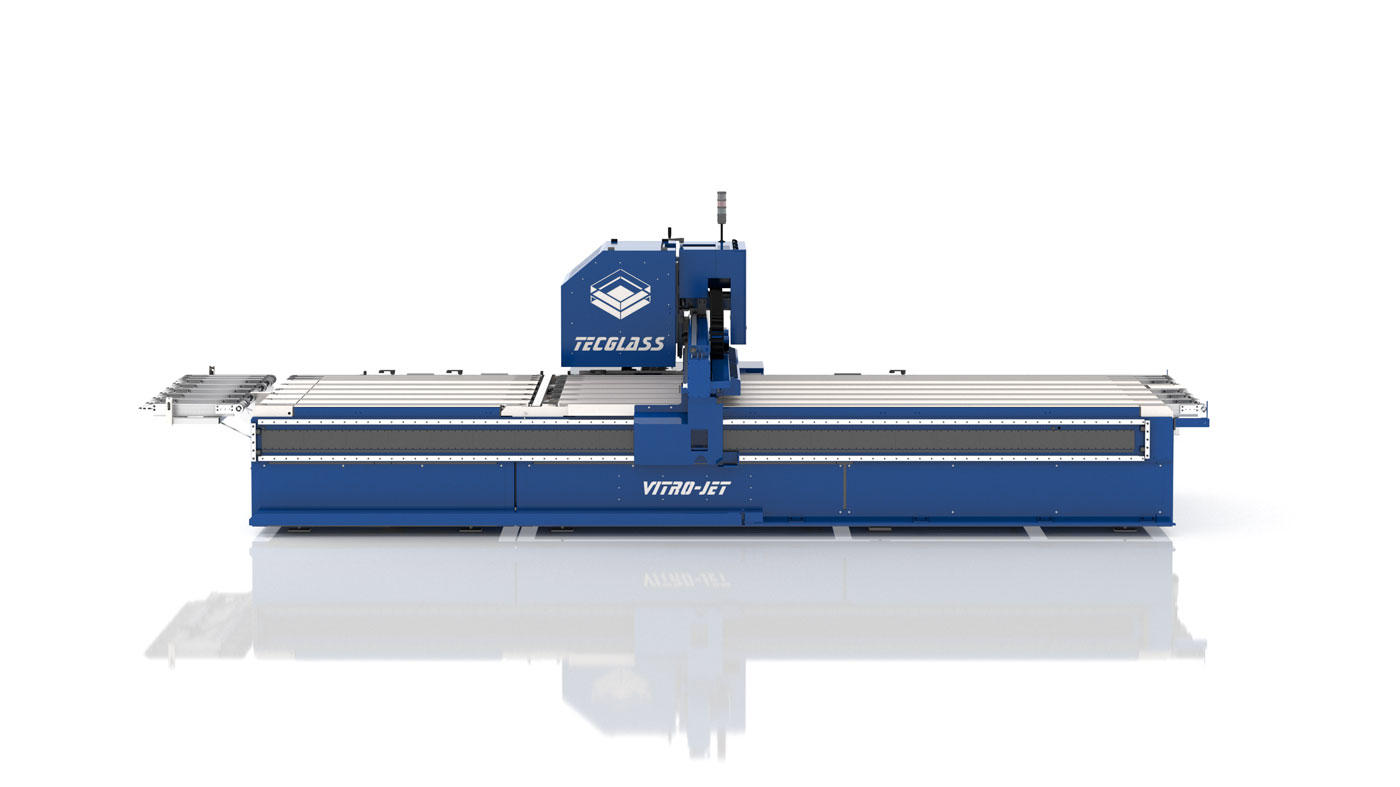

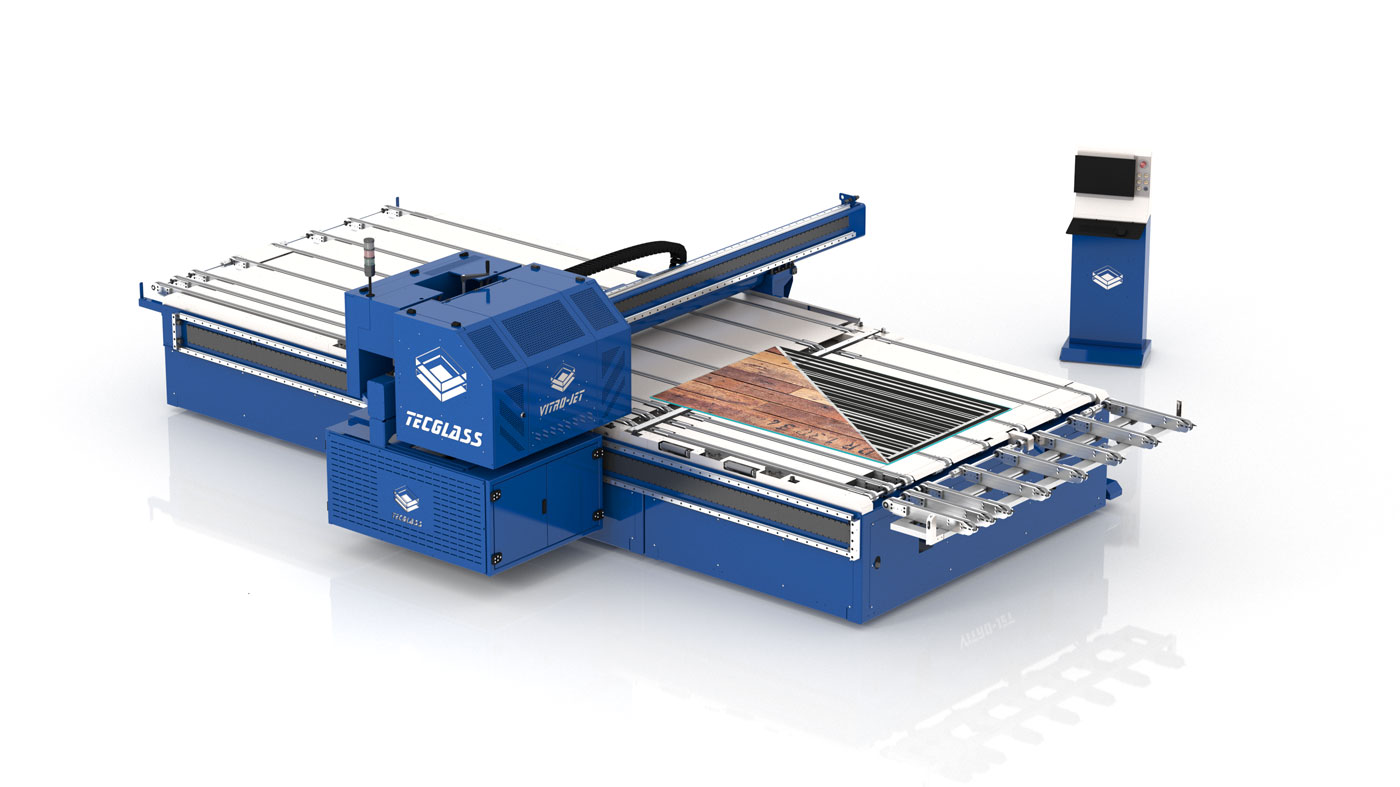

F Type Side Kinetix

F Type Side Kinetix

The unique machine able to print always on the long side of the glass.

Printing changes direction.

  • Tecglass makes printing on large glass sheets faster than ever.

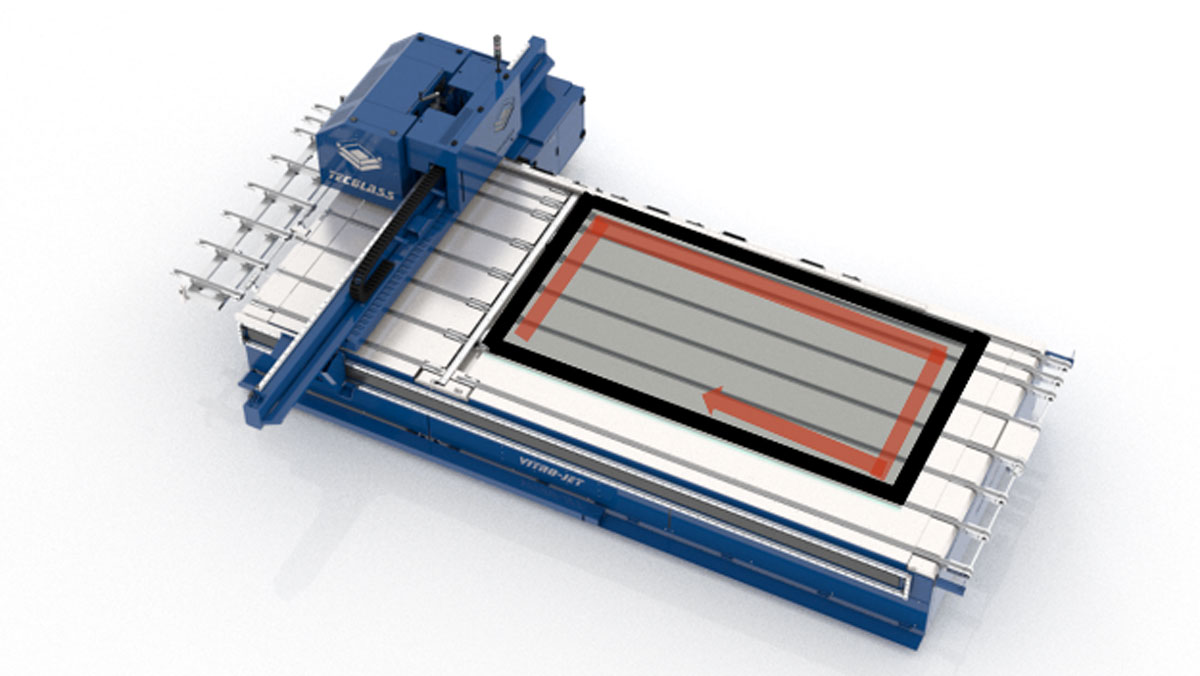

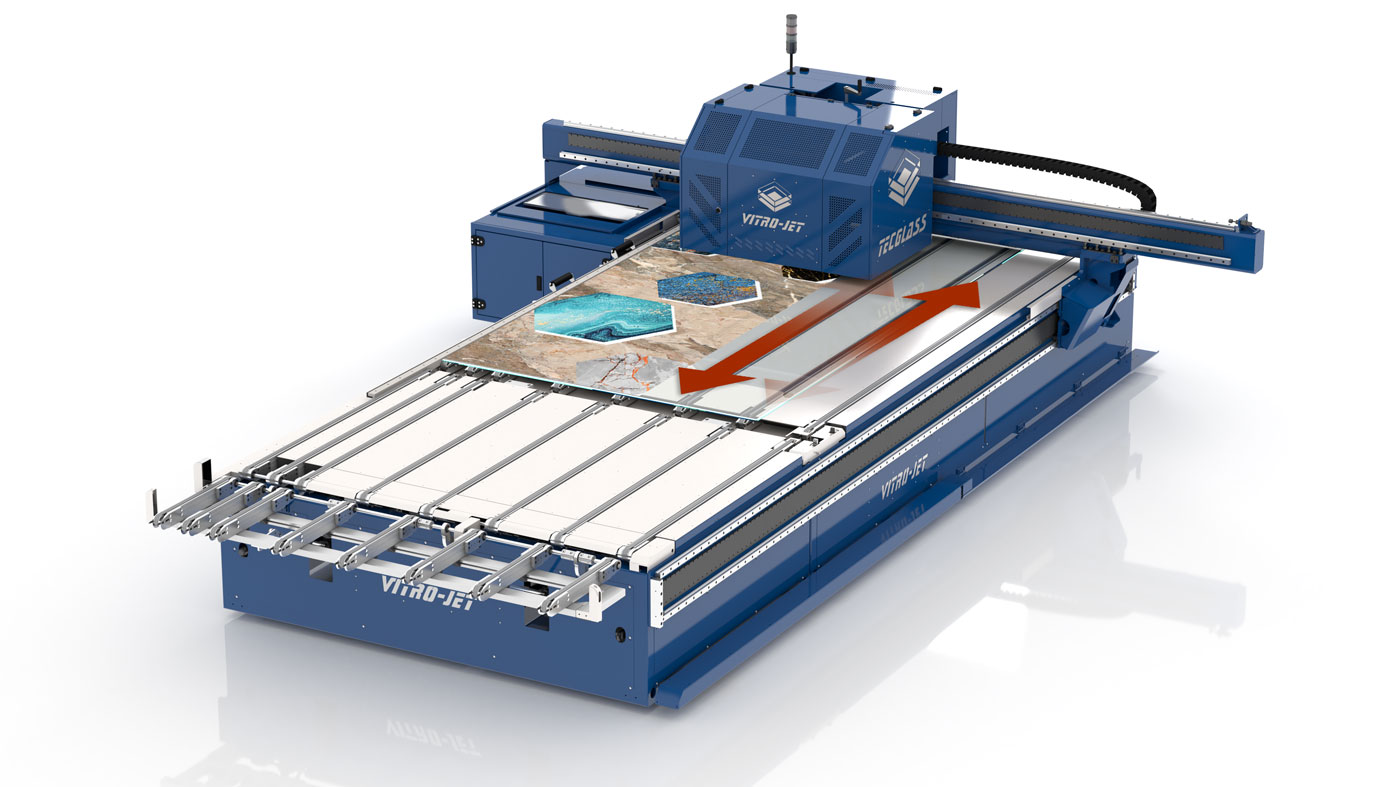

  • The head moves crosswise to the print carriage, lengthwise relative to the support table.
  • It is possible to always print in the direction of the long side of the glass, even with extremely large-sized glass sheets, in the easiest and fastest manner.
  • A truly unique patented technology for an even more versatile machine, one that increases print efficiency.

Take a look at the Video preview here.

  • Print resolution: up to 1440 dpi.
  • Up to 12 color channels available simultaneously at full speed.

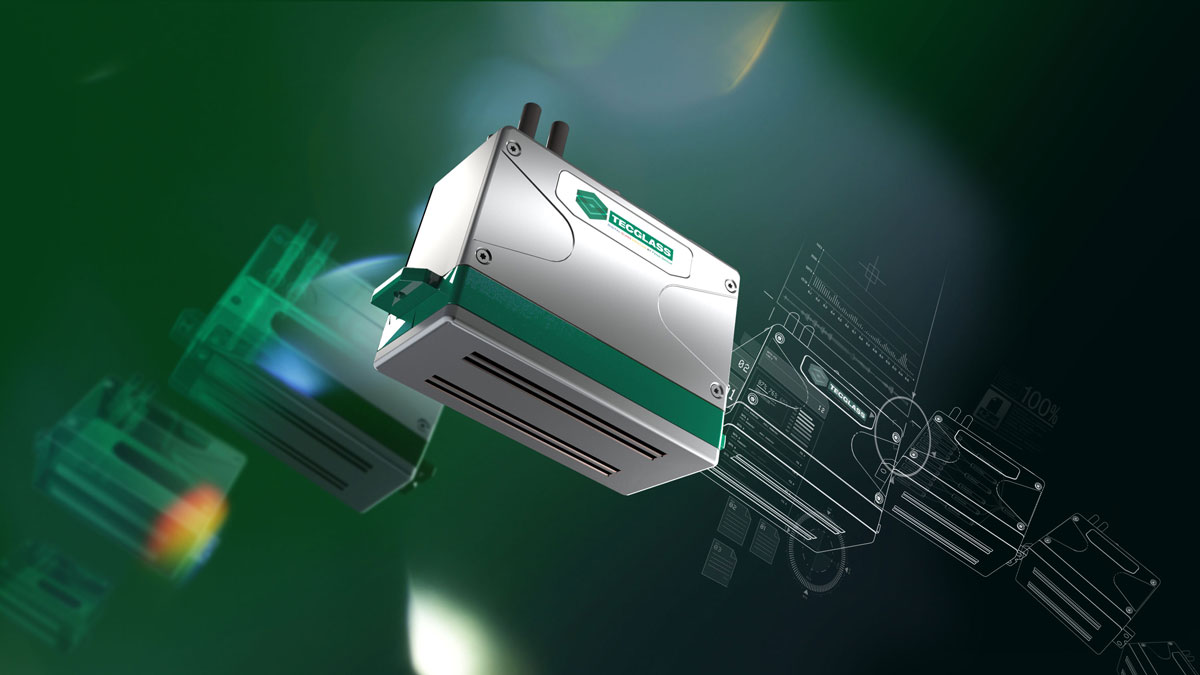

  • 48 single printheads (1000 nozzles each).
  • All movements driven by high precision magnetic linear technology: the highest precision with no mechanical wear.
  • Very easy and precise positioning of irregular shapes. Optional: fully-automatic positioning of irregular glass sheets.
  • High flow rate ink recirculation system: no ink residue on the heads, no need for cleaning.
  • SDT Simultaneous Drying Technology for automatic, simultaneous printing and drying.
  • VDS Technology: 7 levels of ink drop sizes for maximum speed and precision in every print application.


Applications

Utmost precision and speed for printing lines, dots, monochromatic and multicolor graphic patterns and high definition photographic images on glass sheets of all sizes and shapes for the following sectors:

  • Architecture
  • Interior decor
  • Home appliance
  • Automotive
  • 35 16

    Max Glass Size

    1.600 x 3.500 mm

  • 40 22

    Max Glass Size

    2.200 x 4.000 mm

  • 45 25

    Max Glass Size

    2.500 x 4.500 mm

  • 45 28

    Max Glass Size

    2.800 x 4.500 mm

  • 60 28

    Max Glass Size

    2.800 x 6.000 mm

  • 60 33

    Max Glass Size

    3.300 x 6.000 mm

  • 90 33

    Max Glass Size

    3.300 x 9.000 mm

  • 120 33

    Max Glass Size

    3.300 x 12.000 mm

  • 150 33

    Max Glass Size

    3.300 x 15.000 mm

  • 180 33

    Max Glass Size

    3.300 x 18.000 mm

Printing speed - Multicolor printing

  • Single pass printing at 360 dpi up to 440 sqm/hour.
  • Double pass printing at 720 dpi up to 230 sqm/hour.
  • 4 pass printing at 1080 dpi up to 120 sqm/hour.
  • 6 pass printing at 1440 dpi up to 85 sqm/hour.

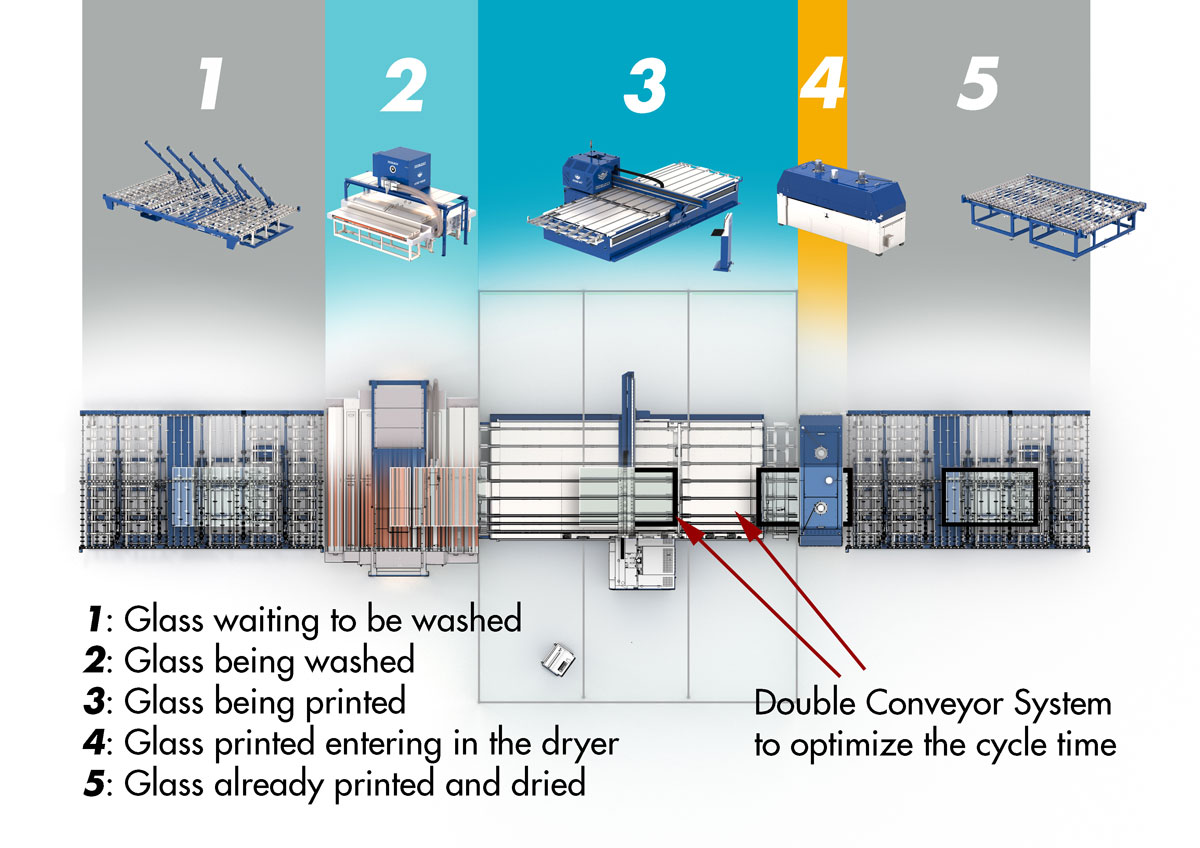

Line components and auxiliary machinery
